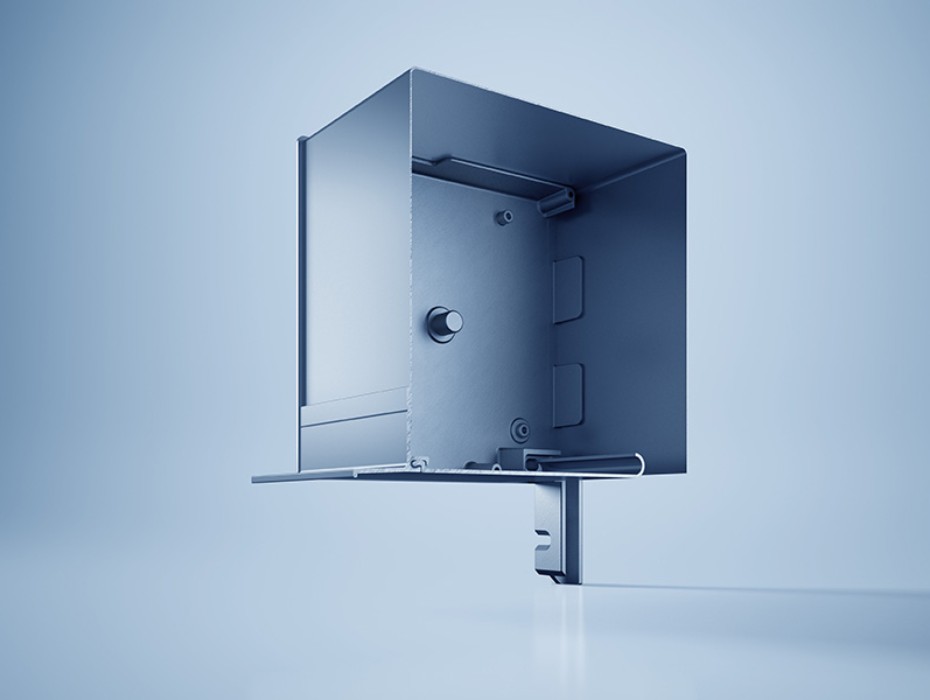

Concealed roller shutter box heroal FMB 90°

heroal FMB 90°

Extruded plaster-base roller shutter box with 90° chamfer

The heroal FMB 90° is invisibly installed into the existing composite heat insulation zone. Plaster-base profiles for different applications are available. Six different box sizes and the complete colour range for the design of the extruded visible panel provide for authentic solutions for every architectural style.

  • Plaster-base installations for subtle looks
  • Box sizes: 125, 137, 150, 165, 180 and 205
  • Wide variety of colours and designs

    Product Details

  • Processing advantages & product details

    Sustainability

    The heroal FMB 90°, made from recycled aluminium, stands out for its high material stability. It provides for perfect security thanks to walls made from high-quality aluminium alloys, and the use of the special heroal connection technology. A wide range of plaster-base profiles ensures the reliable installation in all standard composite heat insulation systems.

    Design

    In addition to more than 500 RAL, DB and VEKA colours, the highly weather resistant heroal hwr powder coating is also available in the exclusive Les Couleurs® Le Corbusier shades. Different gloss levels and structures perfectly accentuate surfaces coated in RAL colours. With the innovative surface refinement heroal SD, the surfaces of extruded parts are given impressive wood, rust or concrete looks. Reflective metallic looks can be created with Eloxal coatings. For building shells that appear to be cast from the same mould, heroal 2-layer thick coatings and heroal hwr powder coatings for extruded elements are perfectly matched - for a perfect colour uniformity with heroal systems for windows, doors, sliding doors, curtain walls and roofings.

    Comfort

    Special guide rails provide for the integration of insect screens into the panel box system. The available space is perfectly used, and any additional installation effort for screens is eliminated.

  • Brochures & test certificates

    Test certificates
    Test certificate
  • Dimensions & drawings

    Number of panel parts
    2
    Number of box sizes
    6
    Sizes from - to
    125 - 205

    Sectional Drawings

  • CAD & BIM data

  • Tender texts
