Roller shutter rod heroal RS 37
Use of the RS 37 with the front-mounted roller shutter box with 20° slope

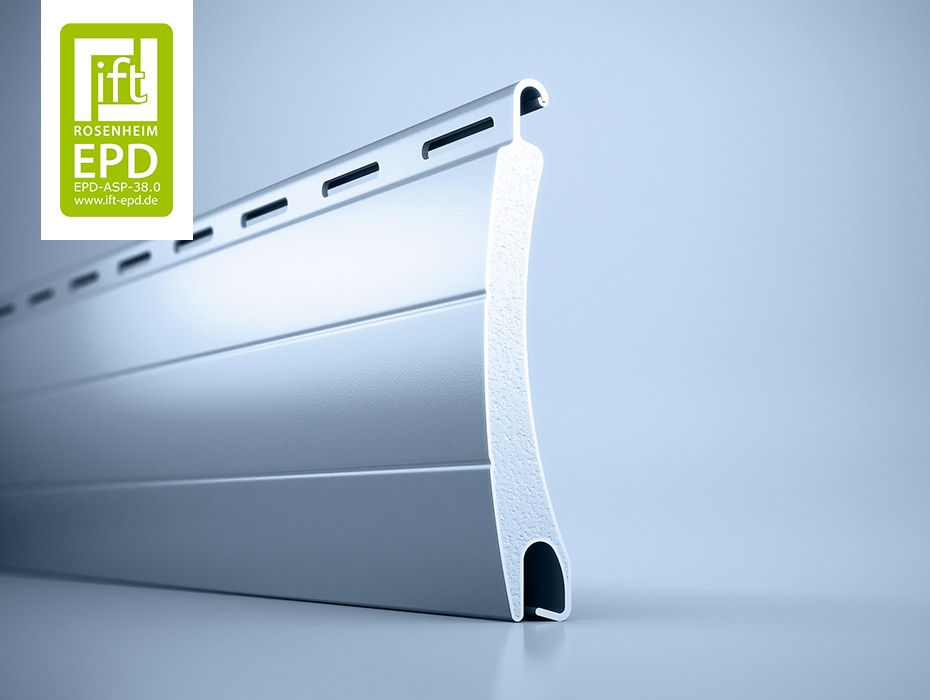

heroal RS 37

Subtle roller shutter slat for small box sizes

The very tight winding and the low winding diameter (for example Ø 157 mm with a 60 shaft and a curtain height of 2,500 mm) are the advantages of the aluminium roller shutter slat heroal RS 37. This is achieved by the use of a very slim slat with a nominal thickness of only 8 mm – the ideal solution if buildings require very small box sizes.

  • Only 8 mm nominal thickness
  • Enhanced total U-value
  • Highly weather resistance surface coating

    Product Details

  • Processing advantages & product details

    Sustainability

    heroal roller shutter slats made of recycled, double-walled aluminium are hail and weather resistant and stand out for their natural protection against corrosion and high material stability. This means that they are not only extremely durable, but also very eco-friendly and sustainable, as they combine a positive impact on the energy efficiency of a building with a very low material input and the use of circular materials.

    Flexibility

    Depending on capacities, heroal roller shutter systems can be ordered as system items, finished curtains or finished elements (heroal Ready).

    Design

    The geometry of the roller shutter slats provides for an ideal winding behaviour, so that even large element widths require only small box sizes. Roll-formed aluminium parts, like slats for roller shutters or roller doors, are coated with heroal 2-layer thick coatings, which have even been certified for marine use. This coating is very colourfast and weather resistant. heroal roller shutters slats stand out for their extremely wide variety of colours. For building shells that appear to be cast from the same mould, heroal 2-layer thick coatings and heroal hwr powder coatings for extruded elements are perfectly matched - for a perfect colour uniformity with the extruded parts of the roller shutter and heroal systems for windows, doors, sliding doors, curtain walls and roofings. Colours from well-known manufacturers of PVC windows are also part of the wide variety of colours.

    Comfort

    heroal roller shutter systems stand out for their extremely silent, smooth running, even when temperatures are very high. Motors from different producers can be used, so that the operation mode can be flexibly adapted to requirements. The connection to a smart home system is also possible. To enhance comfort, insect screens can be directly integrated into the panel box system by means of special guide rails. The available space is perfectly used, and any additional installation effort for screens is eliminated.

  • Brochures & test certificates

  • Dimensions & drawings

    Coverage width [mm]
    37
    Nominal thickness [mm]
    8,0
    Weight [kg/m2]
    3,5
    Max. width [mm]
    3.000
    Max. height [mm]
    3.500
    Max. area [m2]
    6,2

    Sectional Drawings

  • Performance characteristics

  • CAD & BIM data

  • Tender texts

Tailored support for architects

heroal architectural consultants can provide you all-encompassing consulting. heroal’s technical support deals with all the questions you may have concerning windows, doors and curtain walls as well as roller shutters, sun protection and roller doors -if required, also on-site of your building project. Are you new to heroal? Get in touch with us today!
