Window system heroal W 65 Detailed view

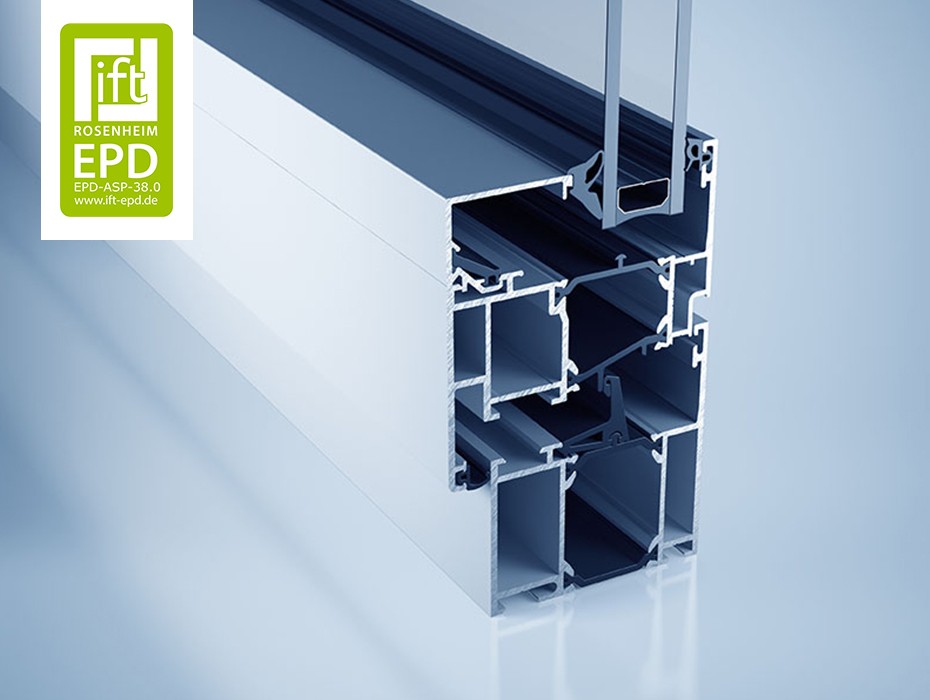

heroal W 65

The efficient window system for applications without high insulation requirements

The heroal W 65 window system is an efficient solution for applications where Uw value requirements are not very high. With its fittings and tried and tested 3-chamber compound system, this system offers reliability and stands out in terms of sound insulation and burglary protection. heroal W 65 also provides for perfect combinations with the door system heroal D 65. Sash profiles are available with push rod fitting grooves (SBN) and plastic fitting grooves (KBN), which makes a flexible fabrication possible. It is possible to create windows with a high proportion of glass, thanks to the small face width of only 90 mm. With a Uf value of 2.5 W/m²K achieved with a face width of 102 mm, the heroal W 65 system is the basic variant among the heroal window systems in terms of thermal efficiency.

  • extremely efficient
  • with sound insulation and burglary protection
  • great variety of colours and designs

EPD - heroal windows EPD - Frame profiles for windows Contact us >

    Product Details

  • Brochures & test certificates
    Test certificates
    Test certificate

  • Dimensions & drawings

    Profile depth [mm]

    Frame profile
    65
    Leaf profile
    75
    Bar profile
    65

    Visible profile width [mm]

    Frame profile
    50 - 154
    Leaf profile
    33 - 67
    Sash/frame combination
    90
    Bar profile
    74 - 254

    Casement profi e variations

    Push rod fitting groove [SBN]
    •
    Plastic fitting groove [KBN]
    •

    System properties

    Glass filling strength [mm]
    58
    Max. leaf weight [kg]
    300
    Max. leaf heights [mm]
    2.400

    Sectional Drawings

  • Performance characteristics
    RC 3 Resistance to burglary
    2 Continuous function
    9A Resistance to driving rain
    5 Impact resistance
    >1,3* Heat insulation (Uw in W/m2K) / Profile width [mm]
    > 2,5/120 Thermal insulation [Uf in W/m2K] / Profile width [mm]
    4 Mechanical resistance
    1 Operating forces
    4 Air permeability
    1 Load-bearing capacity of safety equipment
    1-5 Soundproofing class
    C5/B5 Wind resistance

  • CAD & BIM data

    BIM data
    CAD data

  • Tender texts

    Tender texts
