heroal W 72 RL

Rounded outer contour window system

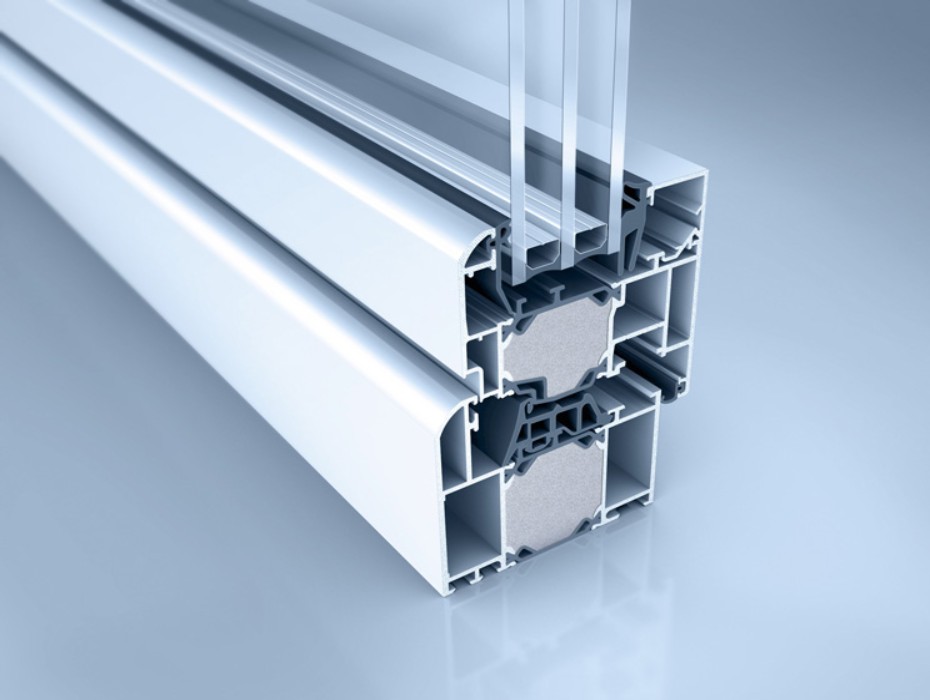

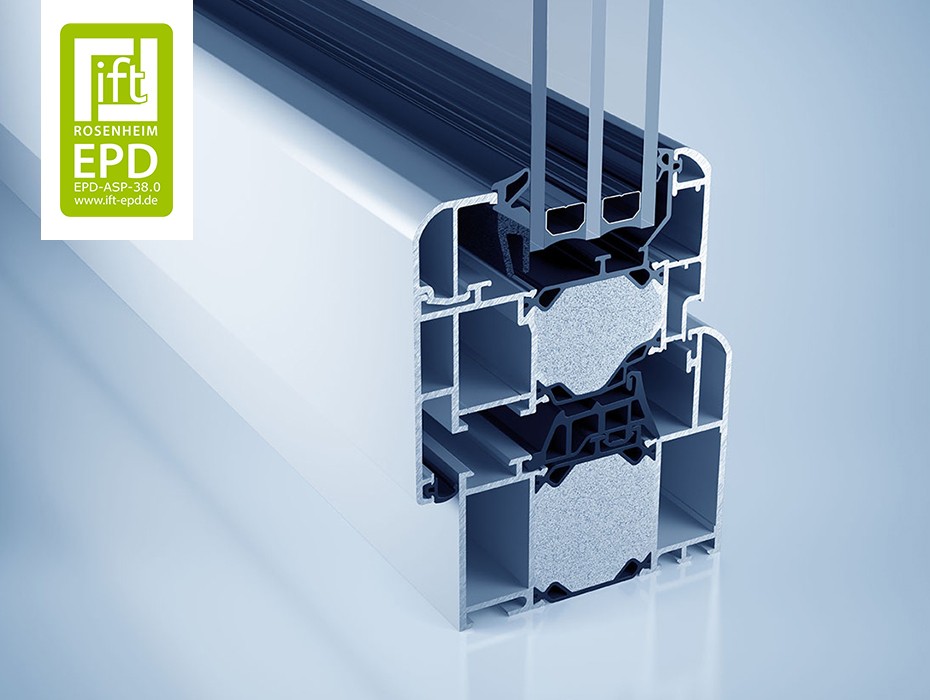

With its classic design including lightly rounded edges (rounded line contour), the heroal W 72 RL window system perfectly integrates into the design of historic facades. This makes it the ideal solution for the restoration of older structures and listed buildings in the areas of residential and building construction.

Contact us >

    Product Details

  • Brochures & test certificates
    Test certificates
    Test certificate

  • Dimensions & drawings

    Profile depth [mm]

    Frame profile
    82
    Leaf profile
    84
    Bar profile
    82

    Visible profile width [mm]

    Frame profile
    60 - 154
    Leaf profile
    33 - 43
    Sash/frame combination
    100
    Bar profile
    74 - 94

    Casement profi e variations

    Push rod fitting groove [SBN]
    •
    Plastic fitting groove [KBN]
    •

    System properties

    Glass filling strength [mm]
    58
    Max. leaf weight [kg]
    300
    Max. leaf heights [mm]
    2.800
    Max. leaf widths [mm]
    1.600

    Sectional Drawings

  • Performance characteristics
    RC 3 Resistance to burglary
    2 Continuous function
    9A Resistance to driving rain
    3 Impact resistance
    >0,84* Heat insulation (Uw in W/m2K) / Profile width [mm]
    1,3/120 Thermal insulation [Uf in W/m2K] / Profile width [mm]
    1 Operating forces
    4 Air permeability
    1 Load-bearing capacity of safety equipment
    1-4 Soundproofing class
    C5/B5 Wind resistance

  • CAD & BIM data

    BIM data
    CAD data

  • Tender texts

    Tender texts

References heroal W 72 RL

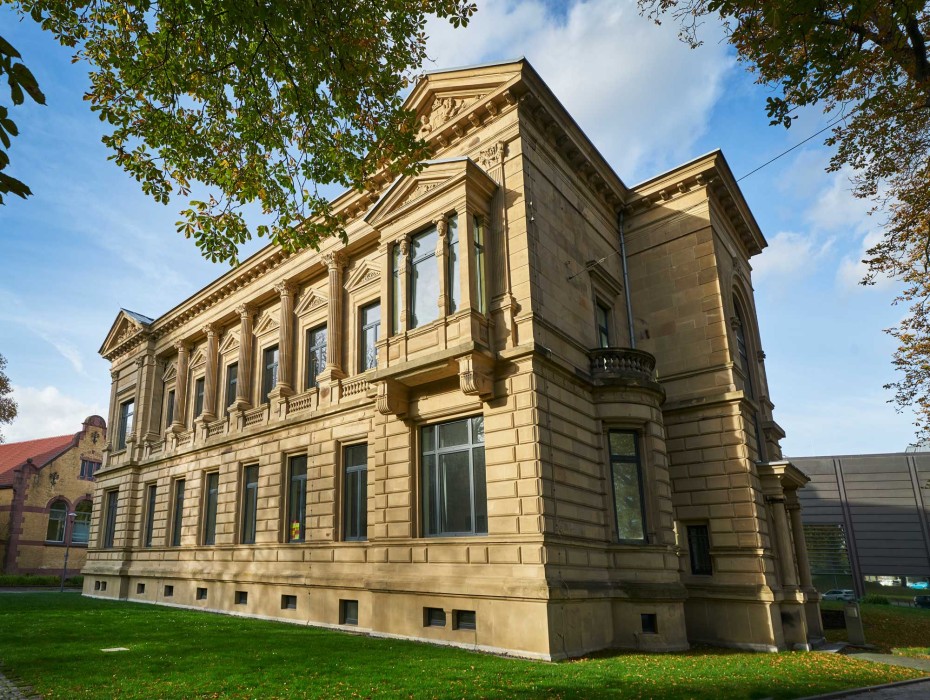

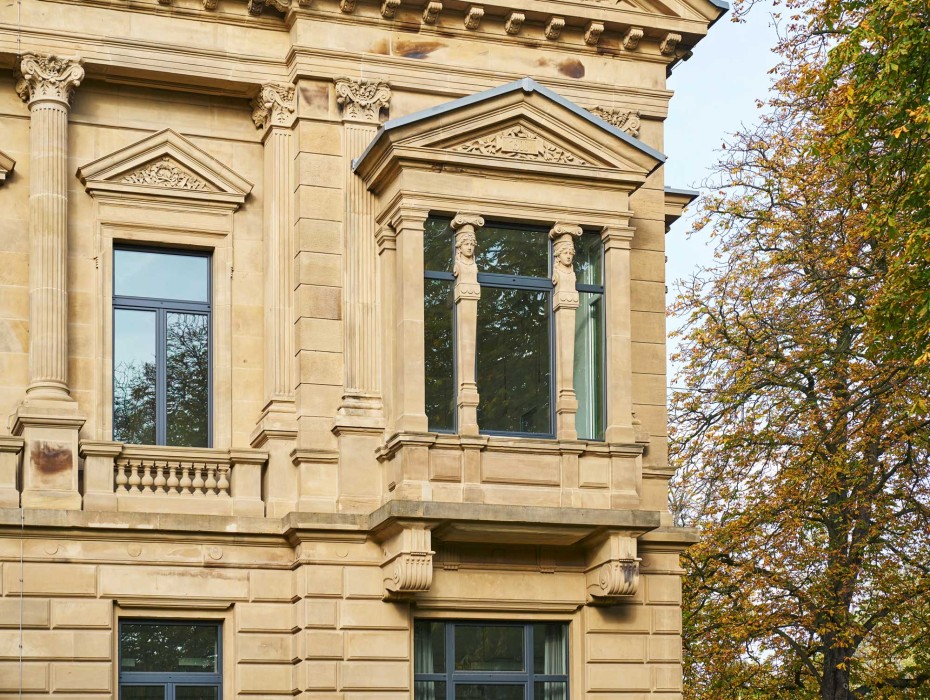

Museum of Art in Bochum - Villa Marckhoff, Germany

Extras

heroal D 72 RL - Front door system

heroal window rebate ventilation

heroal WF Drive

heroal WF

heroal DS Door Systems

heroal IS

heroal LS
