The passive house-certified window system
Window system heroal W 77 PH

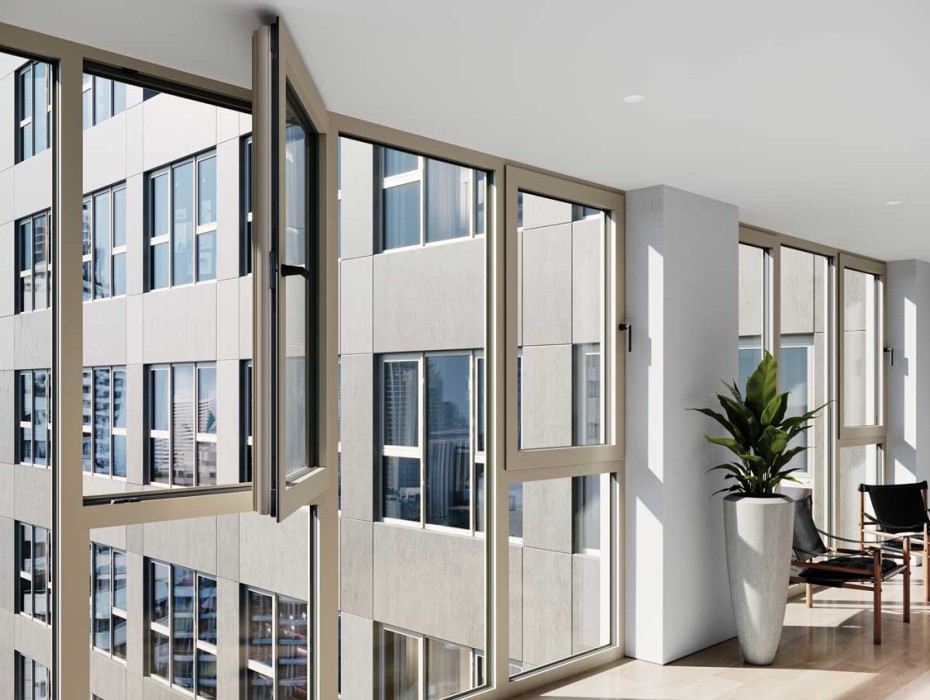

Use of heroal W 77 PH with heroal WF EM hardware system

heroal W 77 PH

The window system with passive-house certification

With an installation depth of just 77 mm and a view width of 180­mm, the heroal W 77 PH window system meets the high requirements of the Dr. Feist German Passive House Institute.

A Uf value of 0.8 W/m²K, which meets passive house requirements, is achieved with a view width of just 120 mm.

Available as a heroal plus package.

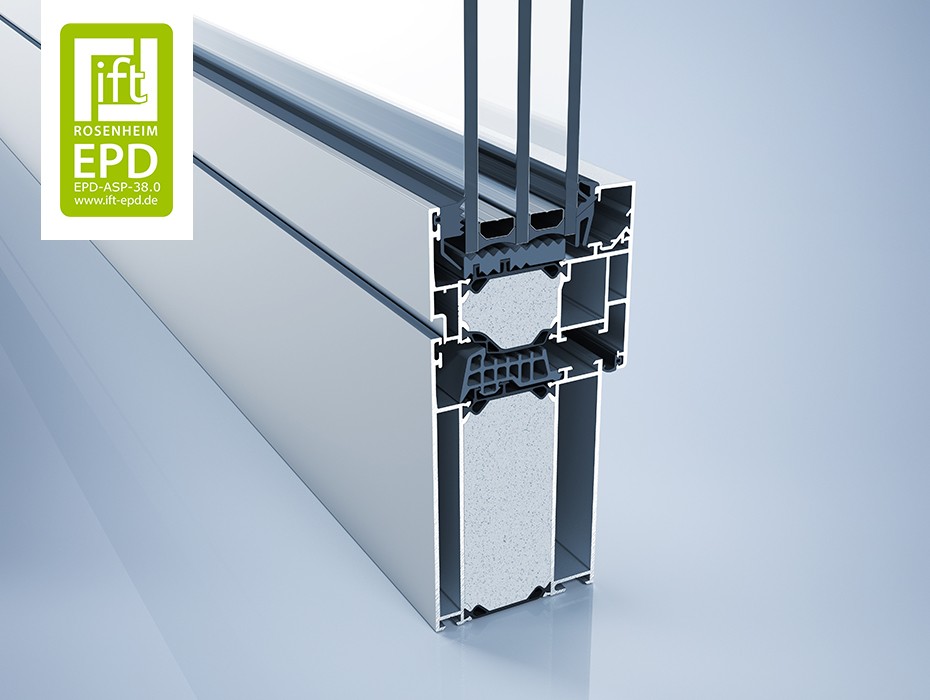

EPD - heroal windows EPD - Frame profiles for windows Video: heroal W 77 > Contact us >

    Product Details

  • Processing advantages & product details

    Innovative complete solution for heroal window systems


    The heroal plus accessory package for the heroal W 77 window system (heroal W 77 plus) is a high-quality and flexible solution for efficient window construction projects. With its modular design, heroal plus consists of a heroal VS Z textile screen, fall protection, an integrated insect screen and a window sill, providing a complete solution from a single source for all trades. All components are available individually, in different combinations or for retrofitting and can be configured and ordered in the heroal Business Configurator with optimised Orgadata Logikal interface. The customised system components ensure maximum efficiency and reliability in production and installation. Thanks to the colour and surface uniformity of all aluminium profiles and a minimum of visible screw connections, heroal plus meets the highest design requirements.

    Read more ...

  • Brochures & test certificates
    Test certificates
    Test certificate

  • Dimensions & drawings

    Profile depth [mm]

    Frame profile
    77
    Leaf profile
    89
    Bar profile
    77

    Visible profile width [mm]

    Frame profile
    70 - 250
    Leaf profile
    43
    Sash/frame combination
    120
    Bar profile
    164

    Casement profi e variations

    Push rod fitting groove [SBN]
    •
    Plastic fitting groove [KBN]
    •

    System properties

    Glass filling strength [mm]
    66
    Max. leaf weight [kg]
    300
    Max. leaf heights [mm]
    2.800
    Max. leaf widths [mm]
    1.600

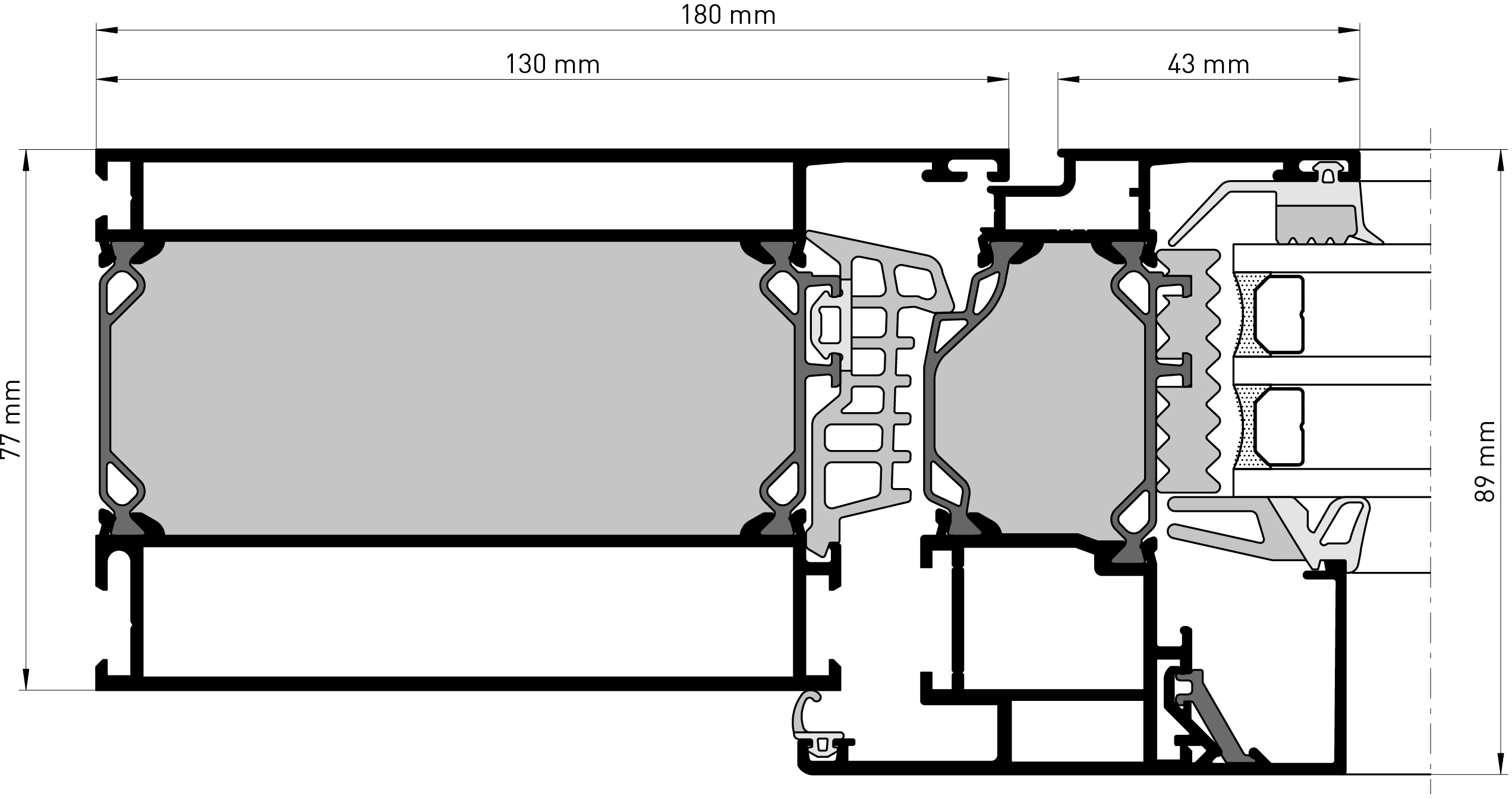

    Sectional Drawings

  • Performance characteristics
    bis RC 3 Resistance to burglary
    3 Continuous function
    9A Resistance to driving rain
    5 Impact resistance
    >0,67 Heat insulation (Uw in W/m2K) / Profile width [mm]
    0,78/180 Thermal insulation [Uf in W/m2K] / Profile width [mm]
    4 Mechanical resistance
    1 Operating forces
    4 Air permeability
    1 Load-bearing capacity of safety equipment
    1-5 Soundproofing class
    C5/B5 Wind resistance

  • CAD & BIM data

    BIM data
    CAD data

  • Tender texts

    Tender texts

Extras

heroal IS

heroal WF

heroal FPS for window systems

heroal LS

heroal fall protection
