Front-mounted roller shutter box heroal FME 90°

heroal FME 90°

Extruded surface-mounted roller shutter box with 90° chamfer

The heroal FME 90° surface-mounted box system is a square, extruded panel solution with clear, rectangular contours. It is equally suited for both new and old buildings.

  • Surface-mounted box ideally suited for a retrofit
  • Extruded and extremely stable, for increased burglary protection
  • Wide variety of colours and designs

    Product Details

  • Processing advantages & product details

    Sustainability

    The heroal FME 90°, made from recycled aluminium, stands out for its high material stability. It provides for perfect security thanks to walls made from high-quality aluminium alloys, and the use of the special heroal connection technology.

    Design

    The highly weather resistant heroal hwr powder coating provides for a perfect colour uniformity with heroal systems for windows, doors, sliding doors, curtain walls and roofings. In addition to more than 500 RAL, DB and VEKA colours, it is also available in the exclusive Les Couleurs® Le Corbusier shades. Different gloss levels and structures perfectly accentuate surfaces coated in RAL colours. With the innovative surface refinement heroal SD, the surfaces of extruded parts are given impressive wood, rust or concrete looks. Reflective metallic looks can be created with Eloxal coatings.

    Comfort

    Special guide rails provide for the integration of insect screens into the panel box system. The available space is perfectly used, and any additional installation effort for screens is eliminated.

  • Brochures & test certificates

    Test certificates
    Test certificate
  • Dimensions & drawings

    Number of panel parts
    4
    Number of box sizes
    6
    Sizes from - to [mm|in]
    125 - 205 5" - 8"

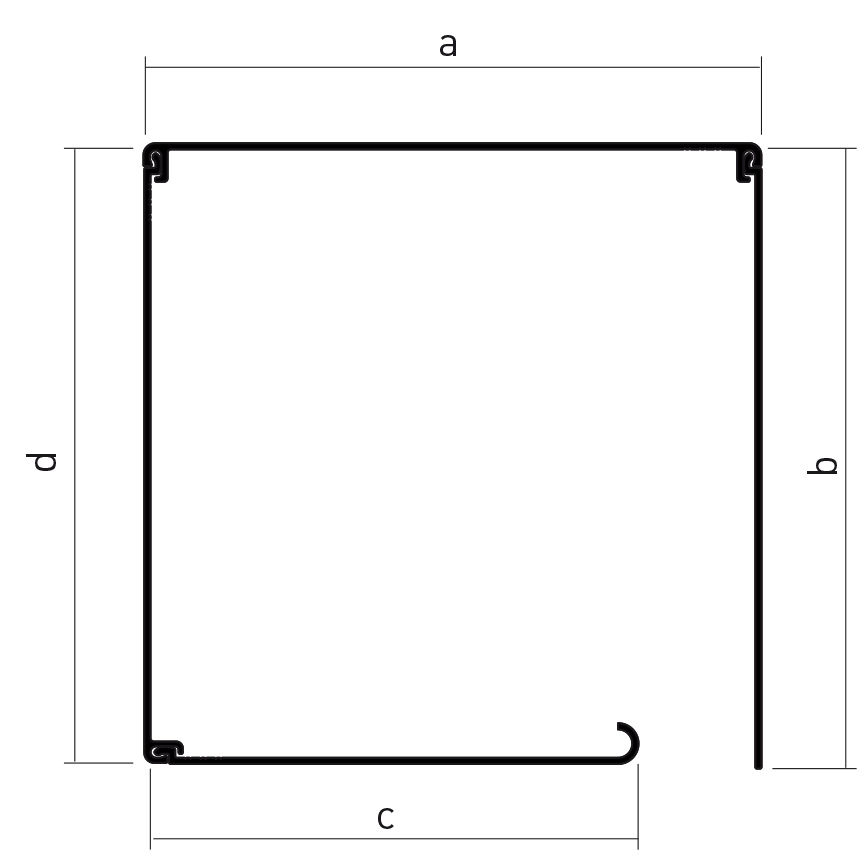

    Sectional drawings

  • Performance characteristics

    SL*** Resistance to burglary
    7** Hail class

    *** SL, the roller shutter slat satisfies technical directive TR 111 from the BVRS (German federal association for manufacturers of roller shutters and sun protection)

  • CAD & BIM data

  • Tender texts
