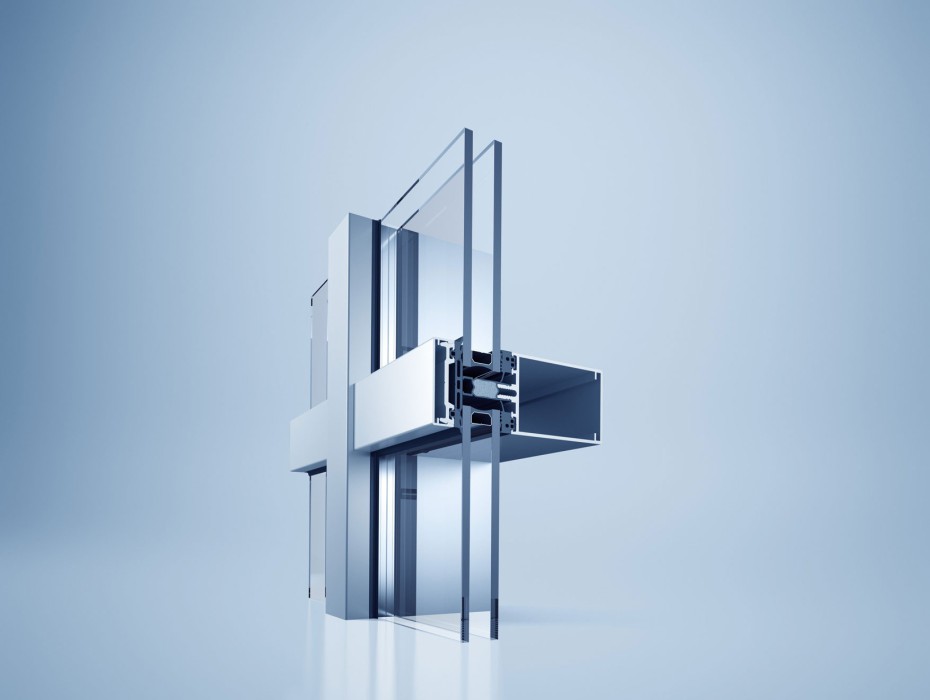

heroal C 50

The system for a wide variety of facade solutions

All designs of the tried-and-tested insulated heroal C 50 curtain wall system deliver excellent results, whether vertical or vertical-bending transom-mullion, transom-transom or mullion-mullion façade. The façade can also be used as a roof area, light roof pyramid or conservatory. Last but not least, the system offers creative freedom thanks to various cover and pressure profiles.

heroal offers an innovative concept for heat insulation. Foam-filled insulators and a continuous seal offer processing benefits in terms of installation, transportation and the screw guidance. All processing benefits apply throughout the systems for the respective design options. The insulation concept can also be used across the systems in the design options and thus leads to a reduction in storage requirements. Values of up to Uf = 1.2 W/m2K can be achieved with the heroal C 50 curtain wall system. Optimised ventilation and drainage are guaranteed with this system.


Cross section

System dimensions

View width [mm]
50
Construction depth [mm]
28 - 260
Transom profile depth [mm]
6 - 215
Glass filling strength [mm]
8 - 62
Max. weight of filling element: [kg]
800

Performance characteristics

1,2 - 1,7 Thermal insulation [Uf in W/m2K] / Profile width [mm]
AE* Air permeability
Heat insulation (Uw in W/m2K) / Profile width [mm]
RE 1200 Resistance to driving rain
2kN/m2 Wind resistance
46db Soundproofing class
RC 3 Resistance to burglary
Operating forces
I5/E5 Impact resistance
Mechanical resistance
Load-bearing capacity of safety equipment
Continuous function

* Air permeability < 0.5 m3/h m at pressure> 600 PA
