heroal RD 75

Space-saving solution for large roller doors

If particularly wide and high roller doors are being constructed, an open installation without a box is the perfect solution to enable the best use of the available space, for example in the industrial sector or in underground car parks. The boxless type of installation, with its small number of components, is also an excellent choice when it comes to economy.

heroal RD 75 Boxed roller doors

Aesthetically pleasing look – technology protected
Elegantly creative and at the same time protected from environmental and external factors – boxed installation of roller doors in panel boxes. Thanks to the versatile range of equipment options, this type of installation is ideally suited to residential and commercial use. The option to install the box retrospectively is an additional advantage: this converts a boxless installation to a boxed installation quickly and economically.

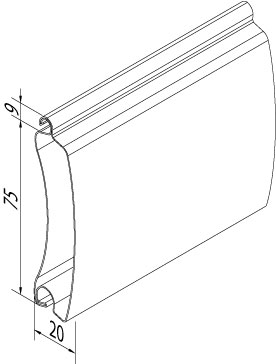

Cross section

System dimensions

Coverage width [mm]
75
Max. clear width [mm]
6.000
Max. clear height [mm]
5.000
Max. area [m2]
16,0

Performance characteristics

4* Wind resistance
Resistance to burglary
6** Hail damage
Anti-push-up device can be integrated

* with 3000 mm element width

** hail class according to VKF test stipulations no. 2 roller shutter, version 1.02. The value reflects the mechanical functional capability.
