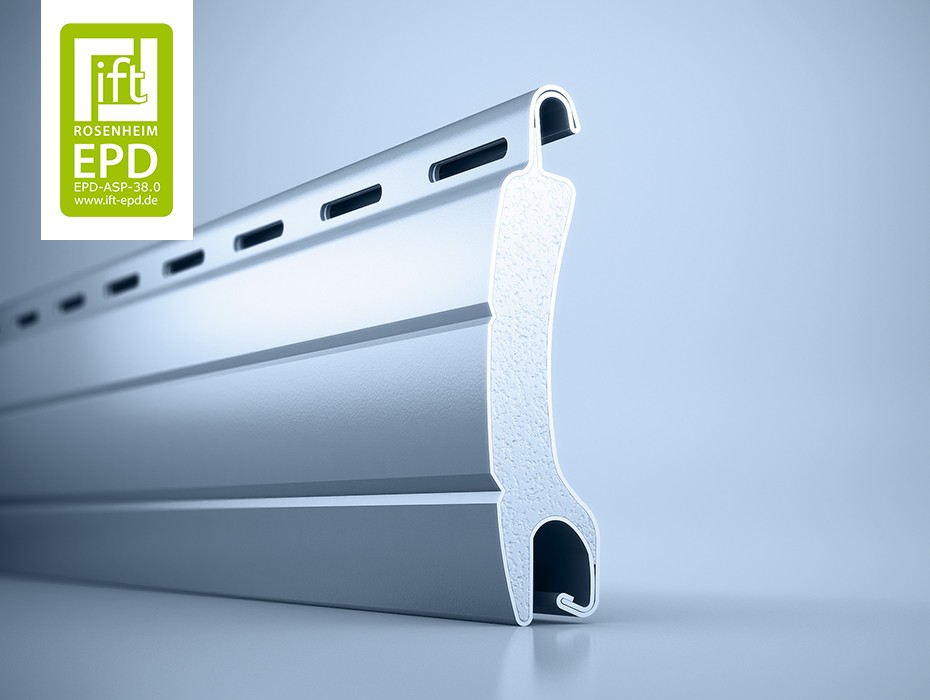

Roller shutter rod Mini heroal RS 32

heroal RS 32

Slimmest heroal roller shutter slat with high wind load resistance

The small coverage width of 32 mm gives the heroal RS 32 – the smallest roller shutter slat in the system – its strength. Thanks to its compact design, this aluminium roller shutter slat meets the requirements of wind resistance class 3 with an element width of 2700 mm.

  • Coverage width only 32 mm
  • Enhanced total U-value
  • Highly weather resistance surface coating

    Product Details

  • Processing advantages & product details

    Sustainability

    heroal roller shutter slats made of recycled, double-walled aluminium are hail and weather resistant and stand out for their natural protection against corrosion and high material stability. This means that they are not only extremely durable, but also very eco-friendly and sustainable, as they combine a positive impact on the energy efficiency of a building with a very low material input and the use of circular materials.

    Design

    The geometry of the roller shutter slats provides for an ideal winding behaviour, so that even large element widths require only small box sizes. Roll-formed aluminium parts, like slats for roller shutters or roller doors, are coated with heroal 2-layer thick coatings, which have even been certified for marine use. This coating is very colourfast and weather resistant. heroal roller shutters slats stand out for their extremely wide variety of colours. For building shells that appear to be cast from the same mould, heroal 2-layer thick coatings and heroal hwr powder coatings for extruded elements are perfectly matched - for a perfect colour uniformity with the extruded parts of the roller shutter and heroal systems for windows, doors, sliding doors, curtain walls and roofings.

    Comfort

    heroal roller shutter systems stand out for their extremely silent, smooth running, even when temperatures are very high. To enhance comfort, insect screens can be directly integrated into the panel box system by means of special guide rails. The available space is perfectly used, and any additional installation effort for screens is eliminated.

  • Brochures & test certificates

  • Dimensions & drawings

    Coverage width [mm]
    32
    Nominal thickness [mm]
    8,5
    Weight [kg/m2]
    4,8
    Max. width [mm]
    3.500
    Max. height [mm]
    3.500
    Max. area [m2]
    7,5

    Sectional Drawings

  • Performance characteristics

    4** Hail class
    0,19 ΔR in accordance with EN 13125:2001
    2* Wind resistance
  • CAD & BIM data

  • Tender texts
