Front door system heroal D 72 CL
Front door system heroal D 72 CL

heroal D 72 CL - Front door system

Front door system with chamfered outer contours

The aluminium front door system heroal D 72 CL with its elegantly chamfered outer contours is the classic variant of the tried and tested front door system heroal D 72. This system achieves the same standards in terms of burglary resistance, sound insulation and thermal insulation as the front door system heroal D 72. The versatile design options of the tried and tested front door system heroal D72 have also been integrated. The look of this front door system perfectly matches the window system heroal W 72 CL, and creates a very harmonious look for your home.

  • Classic Line contour
  • Burglary protection up to RC 3
  • Suitable for old or listed buildings

System request >

    Product Details

  • Prospects

  • Dimensions & drawings

    Visible profile width [mm]

    Leaf profile
    56 - 124

    System properties

    Glass filling strength [mm]
    68/72
    Max. leaf weight [kg]
    180
    Max. leaf widths [mm]
    1.400
    Max. leaf heights [mm]
    3.000
    Min. face width sash/frame profile
    145

    Sectional Drawings

  • Performance characteristics
    RC 3 Resistance to burglary
    8 Continuous function
    E900 Resistance to driving rain
    4 Impact resistance
    ≥ 1,0* Heat insulation (Uw in W/m2K) / Profile width [mm]
    ≥ 1,7 Thermal insulation [Uf in W/m2K] / Profile width [mm]
    3 Mechanical resistance
    2 Operating forces
    4 Air permeability
    1 Load-bearing capacity of safety equipment
    Rw=43 dB Soundproofing class
    C4 Wind resistance

Extras

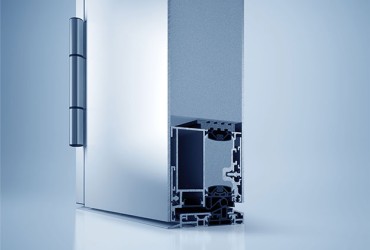

heroal D 92 UD

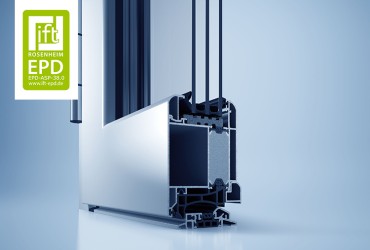

heroal D 72 RL - Front door system

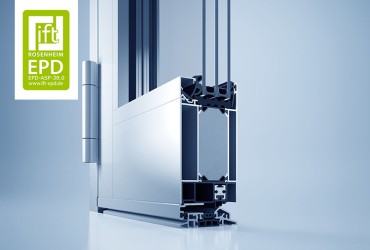

heroal D 72 - Front door system
