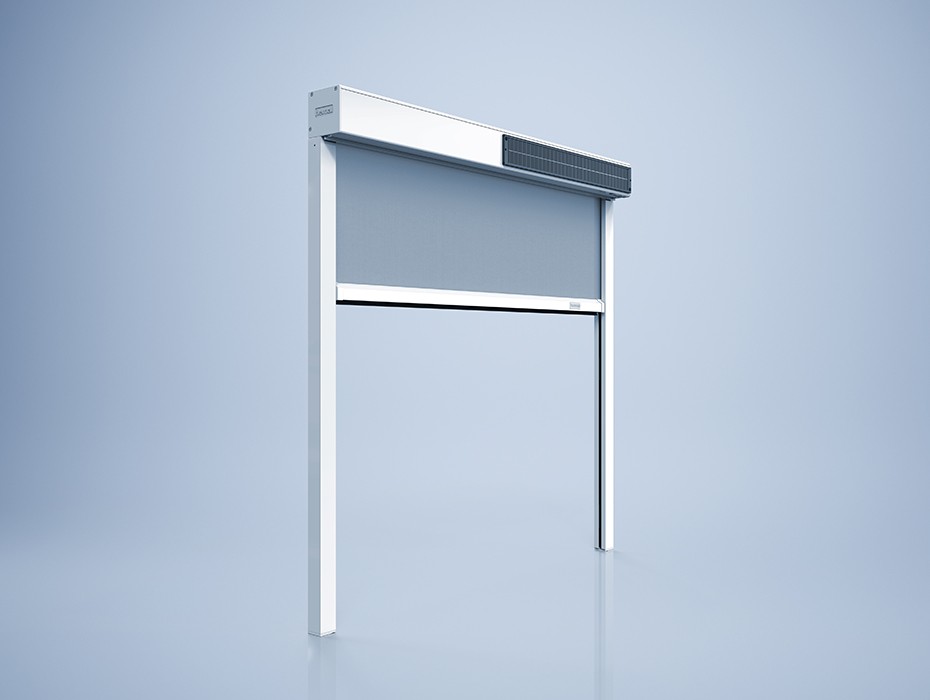

heroal VS Z sun shading system with solar motor

Solar drive for heroal VS Z

Textile sun protection system with solar drive

The heroal VS Z Solar sun protection system combine the advantages of an innovative zip screen system with an integrated solar drive. Sizes of up to 3,000 x 3,000 mm are possible, depending on the solar motor selected. Integration into smart building control systems is also possible on request. The control system is operated by radio via a remote control or a wall switch. Thanks to the innovative zip system, the heroal VS Z with integrated solar motor is particularly wind-stable (up to 145 km/h). Over 250 high-quality textiles are available as standard.

  • Quick and easy installation
  • Without a separate power supply
  • Ideal for retrofitting

    Product Details

  • Processing advantages & product details

    Flexibility

    The heroal solar motor can be controlled with a radio remote control (433 MHz). Several elements of the heroal VS Z Solar can be combined into groups that can be operated via a hand-held/wall-mounted transmitter. The Kaiser Nienhaus Easyline Solar solar motor is ideal for integration into smart home systems as it can be controlled via a USB gateway, which is also compatible with the Kaiser Nienhaus app. For maximum flexibility, the solar motors used in the heroal VS Z Solar are equipped with an integrated Li-ion battery. If there is not a sufficient amount of sunshine, the curtain can still run for up to 100 cycles. Alternatively, the batteries can also be charged via an external interface.

    Fabrication

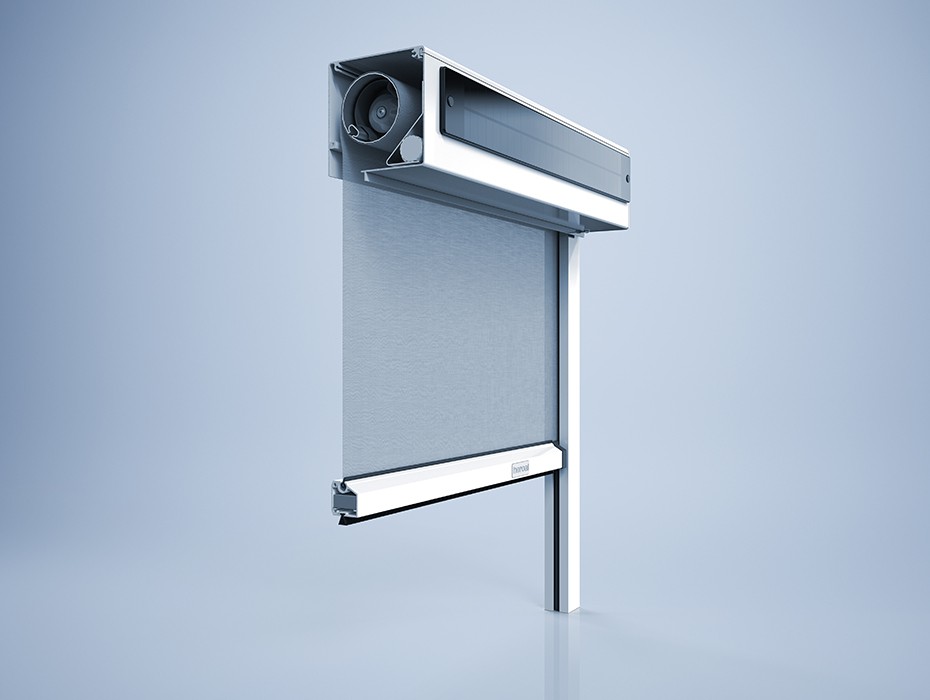

    Since the Li-ion battery is built into the motor, small panel boxes with standard element heights can be used with the heroal VS Z Solar.

  • Brochures & test certificates

    Test certificates
    Test certificate
  • Dimensions & drawings

    Box

    Box type
    FME
    Box shape
    90°

    Element

    Max. Elementwidth [mm]
    2000, 3000
    Max. Elementheight [mm]
    2200, 3000
    Max. area [m2]
    4,4, 7,5
  • CAD & BIM data

  • Tender texts
