Door system heroal D 72 RL
Use of heroal D 72 RL for the entrance to the Bochum Art Museum

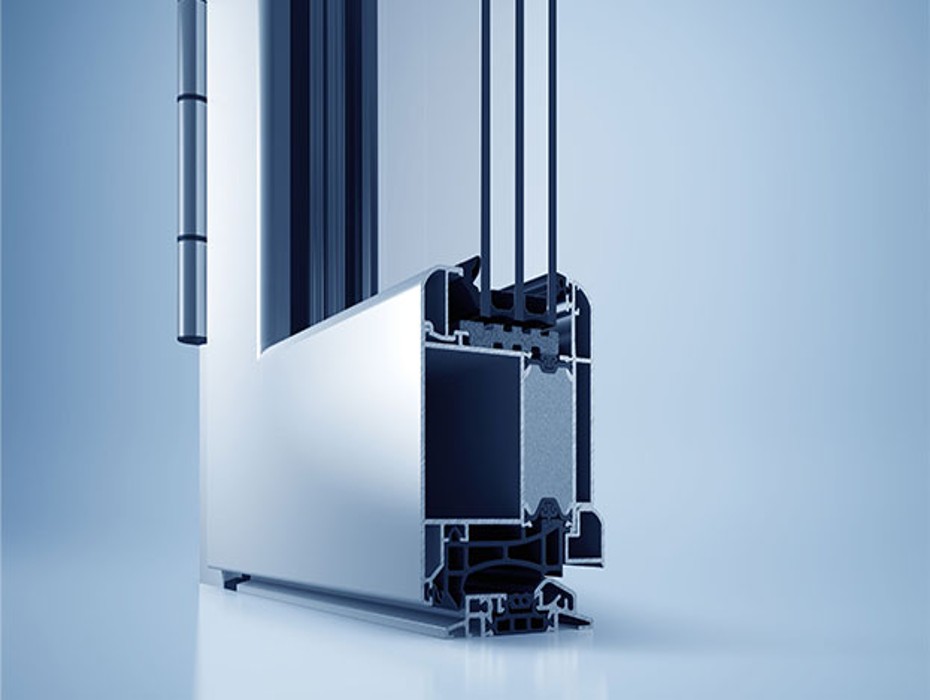

heroal D 72 RL - Front door system

Front door system with rounded outer contours

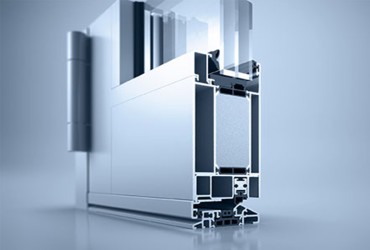

Based on the tried and tested front door system heroal D 72, heroal has developed the front door system D 72 RL with harmonious Roundline contours. This system achieves the same standards in terms of burglary resistance, sound insulation and thermal insulation as the front door system heroal D 72. The versatile design options of the tried and tested front door system heroal D72 have also been integrated. Because of its Roundline contours, heoral D 72 RL is especially suited for the renovation of old or listed buildings. It can be perfectly combined with the window system heroal W 72 RL, creating a consistent look for your house.

  • Rounded outer contours
  • Burglary protection up to RC 3
  • Suitable for old or listed buildings

    Product Details

  • Prospects

  • Dimensions & drawings

    Visible profile width [mm]

    Leaf profile
    56 - 124

    System properties

    Glass filling strength [mm]
    68/72
    Max. leaf weight [kg]
    180
    Max. leaf widths [mm]
    1.400
    Max. leaf heights [mm]
    3.000
    Min. face width sash/frame profile
    145

    Sectional Drawings

  • Performance characteristics

    RC 3 Resistance to burglary
    8 Continuous function
    E 900 Resistance to driving rain
    4 Impact resistance
    ≥ 1 Heat insulation (Uw in W/m2K) / Profile width [mm]
    ≥ 1,7 Thermal insulation [Uf in W/m2K] / Profile width [mm]
    3 Mechanical resistance
    2 Operating forces
    4 Air permeability
    1 Load-bearing capacity of safety equipment
    Rw=43 dB Soundproofing class
    C4 Wind resistance
